SmartLine AI

Name: SmartLine AI
Brand: IEMI Labs
SKU: smartline-ai
Price: 49.00 USD
Availability: PreOrder

Autonomous robot that marks sports fields to ±1 cm

In development · Ships Q4 2027Reservations open

From$9,900per robot, or $4,900 per year all-in

Software: $99 per month

Reserve for $49 (fully refundable)Ask a question

$49 deposit, credited against the final price, refundable any time before shipment. Target ship window Q4 2027.

Product render — final design may vary

Real-time 3D render · drag to rotate · final design may vary

What it is

A small self-driving robot that paints lines on grass sports fields.

What it does

Marks a full pitch on its own
Paints lines to within a centimetre
Saves field layouts for reuse
Drives back to charge when done

Who it's for

Sports clubs, schools, councils, stadiums and field operators.

Look inside

What's inside SmartLine AI

Keep scrolling: it opens up in real time to show the parts that do the work.

AI processorNVIDIA Jetson Orin Nano (8 GB)
CameraWide-angle RGB camera, downward and forward views
SensorsRTK GNSS receiver · IMU · Wheel encoders · Bump sensors · Paint level sensor
ConnectivityWi-Fi · LTE (RTK corrections, NTRIP) · Bluetooth LE
PowerLi-ion battery, 8–10 h runtime; docking-station charging
EnclosureWeather-resistant ABS body with aluminium chassis, all-terrain wheels

Product render — final design may vary

Overview

SmartLine AI is a compact autonomous line-marking robot that uses RTK GPS, a camera and an NVIDIA Jetson Orin Nano to mark football, cricket, baseball and rugby fields with ±1 cm precision. Select a field template, press start, and it plans, paints and returns to charge — replacing hours of manual string-and-wheel marking.

RTK GPS + camera guidance for ±1 cm line accuracy
Templates for football, cricket, baseball, rugby and more
AI obstacle avoidance and field-boundary detection
8–10 h battery, 60 × 40 × 40 cm and portable

The problem

Groundskeepers at schools, clubs and municipalities spend hours every week marking fields by hand with strings, tapes and push markers. Results vary, paint is wasted, and staff time is expensive. Larger robotic markers exist but are costly and bulky for smaller facilities.

Use cases

Weekly field re-marking

Repaint existing lines automatically, following the previous marks with camera guidance.

New field layouts

Mark a full football or rugby pitch from a template in minutes, aligned to RTK coordinates.

Multi-sport facilities

Switch between football, cricket, baseball and athletics layouts on the same grounds.

Schools and municipalities

Free groundskeepers from manual marking across many sites.

Stadiums and events

Mark logos, event zones and temporary layouts accurately.

How it works

1
Scan
The robot scans the field with its camera and RTK GPS to detect boundaries and existing lines.
2
Plan
AI generates an accurate line plan from your chosen template and field dimensions.
3
Mark
The robot drives the plan and sprays lines with ±1 cm precision, avoiding obstacles.
4
Monitor
Progress, paint level and battery are shown live in the app.
5
Return
When finished, SmartLine returns to its base for charging and storage.

In the app

SmartLine

The SmartLine app lets you choose a field, place it on a satellite map, start marking and monitor progress from your phone.

Field template library
Map-based layout placement
Live progress and paint level
Scheduled re-marking jobs
Multi-site fleet view
Paint and time usage reports

SmartLineLive

Pitch 3 · Full-size football

Progress

62%

Accuracy

±0.8 cm

Paint left

31%

Time left

14 min

A01

A02

A03

A04

A05

A06

A07

A08

B01

B02

B03

B04

B05

B06

B07

B08

C01

C02

C03

C04

C05

C06

C07

C08

D01

D02

D03

D04

D05

D06

D07

D08

Obstacle avoided06:48
Training cone at penalty spot, rerouted
Paint at 31%06:41
Refill before the far touchline
Centre circle done06:22
Radius 9.15 m, ±0.6 cm
Marking started06:05
Satellite fix locked, 22 satellites

App preview with sample data — interface in development

AI capabilities

Runs on-device · NVIDIA Jetson Orin Nano

Field boundary detection

Detects grass edges, existing lines and goalposts to align templates.

Model: SegFormer-B0 / YOLO11-seg

Auto line generation

Generates optimal line paths from templates, GPS coordinates and field geometry.

Model: Path planner with RTK fusion

Obstacle avoidance

Detects people, animals, balls and equipment and pauses or reroutes.

Model: YOLO11-n + depth-from-motion

Precision line following

Follows faded existing lines visually for re-marking.

Model: Lightweight CNN line tracker + EKF localisation

Hardware & target specifications

Targets for production units. Subject to change during development.

Hardware

SmartLine AI hardware
AI processor	NVIDIA Jetson Orin Nano (8 GB)
Camera	Wide-angle RGB camera, downward and forward views
Sensors	RTK GNSS receiver · IMU · Wheel encoders · Bump sensors · Paint level sensor
Connectivity	Wi-Fi · LTE (RTK corrections, NTRIP) · Bluetooth LE
Power	Li-ion battery, 8–10 h runtime; docking-station charging
Enclosure	Weather-resistant ABS body with aluminium chassis, all-terrain wheels
Dimensions	60 × 40 × 40 cm
Weight	~28 kg (without paint)
Ingress rating	IP54

Navigation

Navigation target specifications
Positioning	RTK GNSS + camera + IMU fusion
Line accuracy	±1 cm
Line width	5–12 cm adjustable
Marking speed	Up to 4 km/h

AI and compute

AI and compute target specifications
Processor	Jetson Orin Nano 8 GB
Perception	Boundaries, lines, obstacles
Templates	Football, cricket, baseball, rugby, athletics, custom
Safety	Person detection stop, bumpers, e-stop

Power and paint

Power and paint target specifications
Battery	8–10 h
Charging	Docking station
Paint tank	15 L (target)
Paint	Standard water-based field paint

Physical

Physical target specifications
Size	60 × 40 × 40 cm
Weight	~28 kg (without paint)
Rating	IP54
Operating temp.	0 °C to 45 °C

Built with

The real parts inside

Proven, off-the-shelf components our prototypes are built on. Final production parts may differ.

NVIDIA Jetson Orin module (reference photo) — NVIDIA Jetson Orin module
Higher-power option for large sites and robots
Photo: 4300streetcar,CC BY 4.0, via Wikimedia Commons · AI overlay added

High-quality camera with C-mount lens (reference photo) — High-quality camera with C-mount lens
Sharp, fast capture for inspection and decisions
Photo: Laserlicht,CC BY-SA 4.0, via Wikimedia Commons · AI overlay added

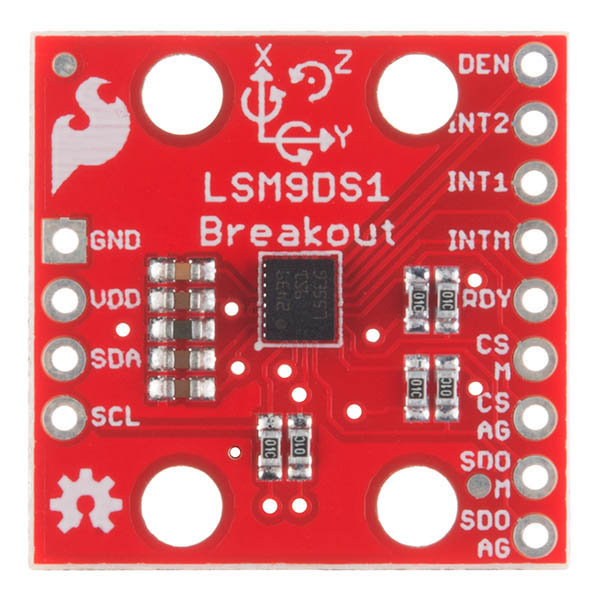

Motion sensor (IMU) (reference photo) — Motion sensor (IMU)
Senses movement and orientation
Photo: SparkFun,CC BY 2.0, via Wikimedia Commons · AI overlay added

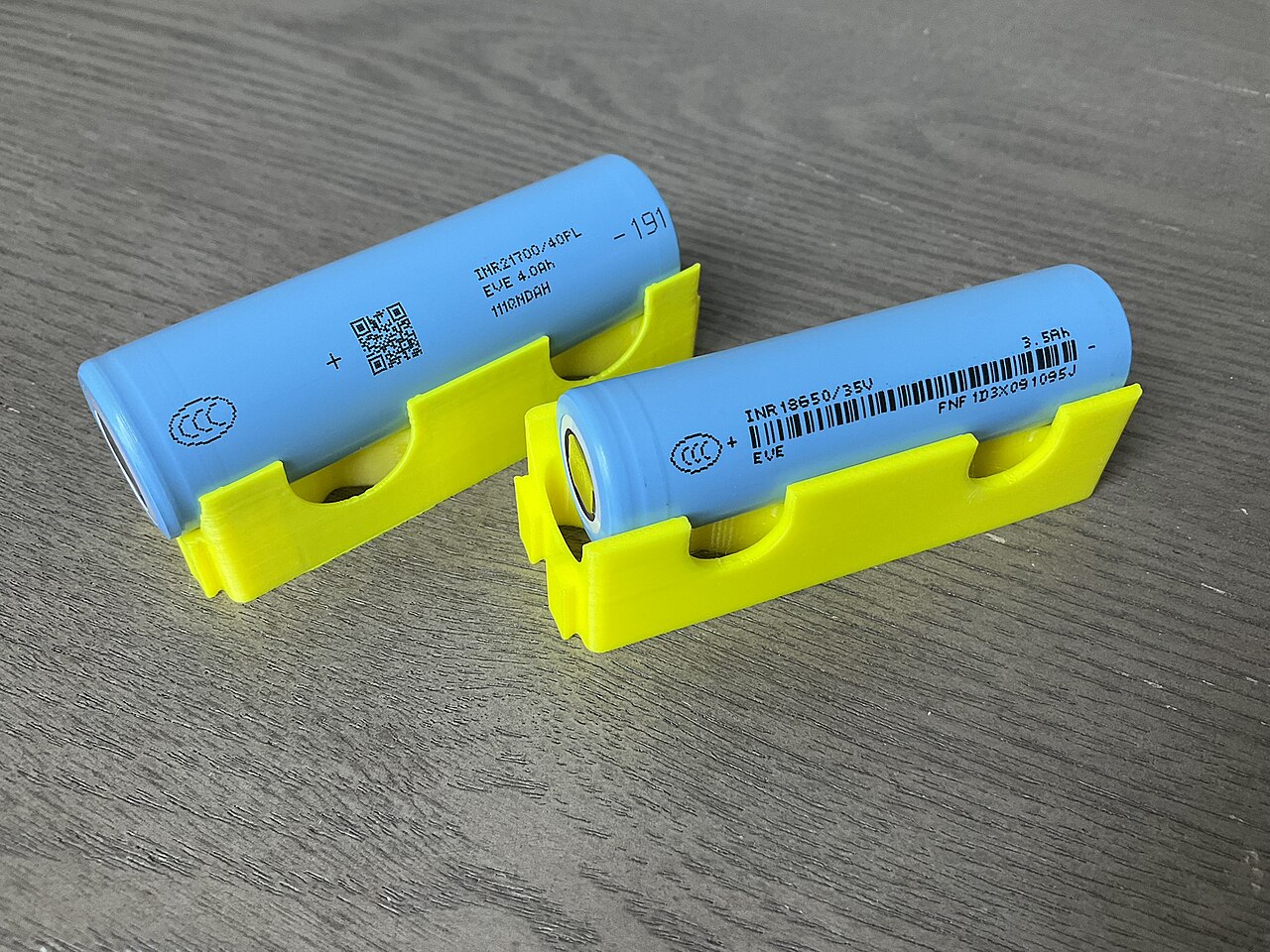

Lithium-ion battery cells (reference photo) — Lithium-ion battery cells
Hours of cable-free power
Photo: Sevenethics,CC0, via Wikimedia Commons · AI overlay added

Reference photos of commercially available components. IEMI Labs is not affiliated with or endorsed by their manufacturers. Photo credits

In the box

Planned contents

SmartLine AI robot
Docking / charging station
Paint nozzle kit
RTK subscription setup (or base-station option)
Field template library
Quick-start guide

Software & app

The SmartLine app lets you choose a field, place it on a satellite map, start marking and monitor progress from your phone.

Field template library
Map-based layout placement
Live progress and paint level
Scheduled re-marking jobs
Multi-site fleet view
Paint and time usage reports

Integrations

IEMI SmartLine app (iOS / Android / web)
NTRIP RTK correction services
Custom templates via DXF / GeoJSON import
Maintenance scheduling via API

Pricing

Hardware: $9,900 per robot, or $4,900 per year all-in

Software: $99 per month

Choose to own the robot ($9,900 + $99/mo) or subscribe all-in for $4,900 per year including the robot, RTK corrections, templates, paint-system servicing and updates.

All-in

$4,900/year

Robot-as-a-service for schools and clubs.

SmartLine robot included
Standard templates
RTK corrections
Servicing and updates

Own

$9,900 + $99/mo

For multi-pitch clubs and grounds teams.

Robot purchase
Custom templates
Scheduled jobs
Extra battery

Municipal

Custom

For councils, stadiums and multi-site operators.

Fleet dashboard
Logo and event marking
Multi-robot pricing
Priority support

Indicative launch pricing in USD, excluding taxes and shipping. Final pricing is confirmed before any balance is charged.

Estimated impact

Marking time per field: up to 75% less (est.)
Paint waste: up to 30% less (est.)
Groundskeeper hours: several hours saved per field per week (est.)

Illustrative estimates based on internal modelling and typical deployments; not measured results. Actual outcomes depend on site conditions and usage.

Designed for

Sports clubs
Schools and universities
Municipalities and councils
Stadiums
Sports facility operators

Industries

Roadmap

Target milestones. We will email reservation holders and pilot partners as they change.

Q4 2026
Reservations open; drive-base and RTK prototype on test fields
Q1 2027
Line planning and obstacle-avoidance validation
Q2 2027
EVT builds; paint system and battery endurance testing
Q3 2027
Field pilots with schools, clubs and municipalities
Q4 2027
First shipments to reservation holders

Questions

Ask about SmartLine AI

Volume orders, clubs and institutions, integrations or anything else. We reply within two business days.

SmartLine AI FAQ

General FAQ

Is the $49 reservation deposit refundable?

Yes. The $49 deposit is fully refundable any time before your unit ships — email [email protected] or use the refund link in your confirmation email. It is credited in full against the purchase price, and reserving creates no obligation to buy. Payments are processed securely by Stripe.

Is my data processed on the device?

Navigation and obstacle detection run on the robot. Camera images are used only for driving and are not stored or uploaded; only job progress and telemetry are sent to the app.

Do I need an RTK base station?

No. SmartLine uses network RTK corrections (NTRIP) over LTE in most regions. A portable base station option is planned for areas without coverage.

Is it safe around people?

SmartLine detects people and objects and stops or reroutes. It also has physical bumpers and an emergency stop, and is designed to be supervised from the app.

Which paint does it use?

Standard water-based field-marking paint, mixed to your usual ratio.

Is SmartLine AI available now?

SmartLine AI is in development. Specifications shown are target specifications and may change as we complete engineering validation. We are targeting a Q4 2027 ship window and will email reservation holders with every major milestone.

What warranty will it come with?

We are planning a 2-year limited hardware warranty covering manufacturing defects, with advance replacement for pilot and business customers. Final warranty terms will be published before shipping begins.
